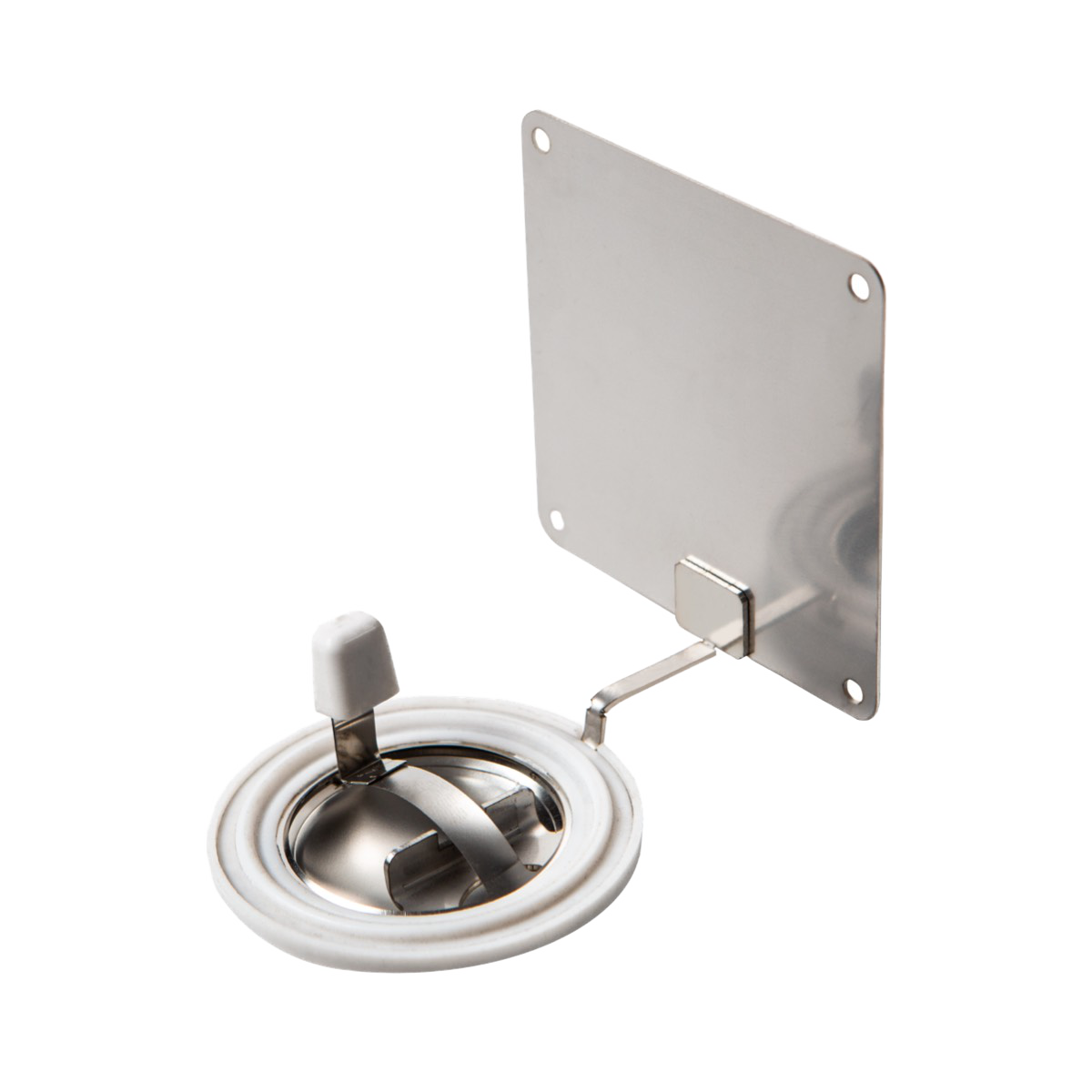

Opti-Gard Ferrule
The Opti-Gard Ferrule is specifically designed for the food and beverage, biotechnology and biopharmaceutical industries.
This rupture disc has a smooth, continuous surface finish that meets FDA approvals. Installation with special gaskets/sleeves and the Tri-Clamps maintains the aseptic environment around the rupture disc.
Product description
Our Opti-Gard Ferrule is specially designed for the food and beverage, biotechnology and bio-pharmaceutical industries.
It features a smooth, uninterrupted surface finish that meets FDA approvals. Installation using ferrules and tri-clamps preserves the aseptic environment around the disc.
NA-Connect
Opti-Gard Ferrule is also available to fit within the most sanitary clamping design in the industry, NovAseptic Connectors (NA-Connect). When installed within the NA-Connect design, the disc sits flush with the vessel wall. The radically reduces contamination build-up and allows for greater cleanliness and easy maintenance of a sterile environment.
In addition, the Opti-Gard Ferrule is the only rupture disc solution to combine NovAsceptic fittings with the non-invasive burst detector, Flo-Tel. This ensures instantaneous notification of disc burst without direct contact to the process
We supply all discs with the tri-clamp system and an integral Flo-Tel actuator as standard. The Opti-Gard Ferrule is an excellent choice for many aseptic and hygienic applications.
Key features
- Meets FDA approvals
- Ideal for CIP and SIP applications
- Non-fragmenting design
- Industry leading 3% tolerance
- Full vacuum service
- Tested to over 100,000 pressure-vacuum cycles
*NA-connect is a registered trademark of NovAseptic America Inc.
