Conservation Relief Vents
Elmac Technologies’ Low Pressure Protection Equipment is designed to safeguard tanks against rupture or implosion while filling and/or emptying. The Pressure Vacuum Relief Valves (PVRV) restrict product loss and environmental discharges while also protecting tanks from thermal changes. It is crucial to have sufficient pressure protection to prevent catastrophic failure of tanks or vessels.
We are dedicated to creating Pressure Vacuum Relief Valves (PVRV) and other safety equipment that are at the forefront of providing ultimate protection in low-pressure process environments. Our skilled technical team collaborates closely with our global clientele to create tailored, cost-effective solutions that meet or exceed their safety and operational performance needs.

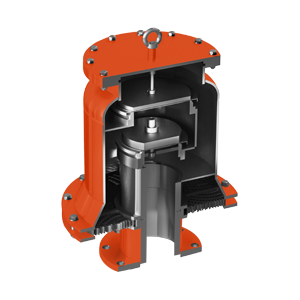

FAB Valve Series
The Elmac Technologies® patented Flame Arrester Breather Valve (FAB Valve™) integrates a RE-Flow™ Flame Arrester with a Pressure & Vacuum Relief Valve (PVRV).
830 Valve Series
Protectoseal Series 830, Pressure / Vacuum Conservation Vent with Flame Arrester is designed to prevent costly evaporation losses, tank rupture due to over-pressure, and collapse due to vacuum
830E Valve Series
Protectoseal Series 830E, Pressure / Vacuum Conservation Vent with Flame Arrester is designed to prevent costly evaporation losses, tank rupture due to over-pressure, and collapse due to vacuum

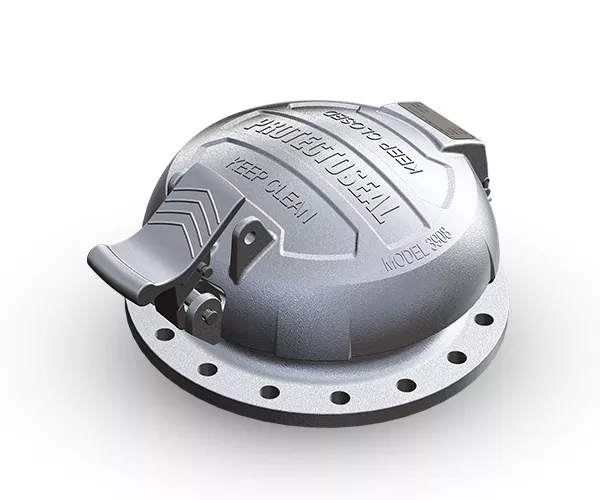

3908-SL Series Relief Thief Hatches
Pressure & Vacuum Relief Thief Hatch provides ready access to the tank interior for inspection, gauging or sampling operations.

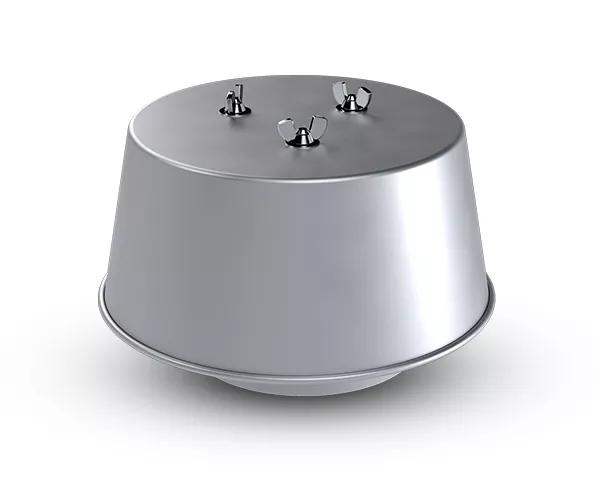

5200G Series Weatherhood Free Vent
Protectoseal Series 5200G Free Vent provides open access to the tank’s vapor space and provides continuous pressure and vacuum venting.
6240 Series End-Of-Line Vacuum Vent
Protectoseal Series 6240 Vacuum Relief Vent is intended for use where only vacuum relief is required.
8540G Series End-Of-Line Conservation Vent
Protectoseal Series 8540G Improved Performance, Aluminum, End-of-Line Pressure / Vacuum Breather Vent provides quicker pressure pallet lift, and improved flow performance at low overpressures just above the relief set point.

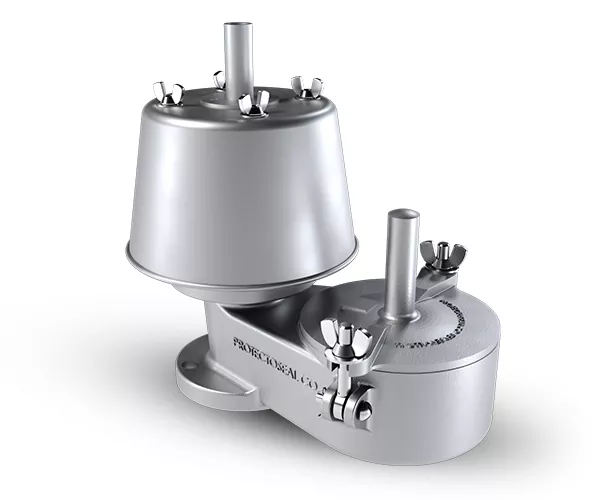

8540H Series End-Of-Line Conservation Vent
Protectoseal Series 8540H, End-of-Line Pressure / Vacuum Conservation Vent is intended for use where both pressure and vacuum relief are required.

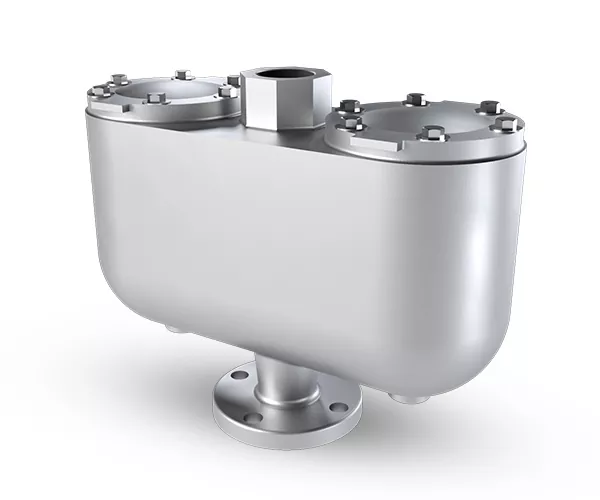

8740 Series In-Line Relief Vent
In-Line Conservation Vent is used to conserve costly vapors and to protect a tank or vessel from damage caused by excessive pressure or vacuum accumulations during normal operation.
16240 Series Side-Mounted Vacuum Relief Vent
Protectoseal Series 16240 Side-Mounted Vacuum Relief Vent is intended for use where only vacuum relief is required.
17800 Series Pipe Away Pressure Relief Vents
Protectoseal Series 17800 Pipe-Away Pressure Relief Vent is intended for use where pressure relief is required and the relieving vapors must be piped away and not emitted into the atmosphere.
18540D Series Pipe-Away Pressure And Vacuum Relief Vent
Protectoseal Series 18540 Pipe-Away Pressure / Vacuum Conservation Vent is designed to provide pressure and vacuum relief in applications that require hazardous vapors to be piped away, rather than released into the atmosphere.
About pressure protection equipment from Elmac Technologies
We are committed to developing the world’s leading Pressure Vacuum Relief Valves (PVRV) and associated safety equipment that provide ultimate protection in low pressure process environments. Our experienced engineering team works closely with our global customers to design and tailor tailor-made, cost-effective solutions that meet or exceed their requirements in terms of both safety and operational performance benefits.
The filling and emptying cycles of tanks and vessels cause changes in liquid volume and vapor space, and this, along with fluctuating operating temperatures and pressures, results in the need for pressure relief equipment. Situations where a tank or vessel is vulnerable to engulfment by fire may require the rapid removal of large amounts of vapor to protect the tank and its surroundings. Safety devices, such as high-level alarms or control systems, can fail, leading to catastrophic failure of the tank. This can lead to serious injury, product loss and severe environmental damage. Accordingly, fail-safe devices such as: pressure/vacuum relief valves, emergency relief vents, and/or other venting devices such as: rupture discs should be mounted adjacent to flame arresters where they may be required.
Elmac offers a full range of pressure vacuum relief valves and related equipment. For more detailed information, please select a specific product from our range below.
